12.5.3 实操：构建一个可复现的多模态创意包
在连接真实图像、视频或语音模型之前，先做一个小工作流，证明你理解产品闭环：输入、Prompt 规划、资产生成、版本记录、审核、导出和失败案例。
这个练习只使用 Python 标准库，并在本地生成 SVG 模拟资产。这样做是故意的：目标是先让工作流可复现，再把 SVG baseline 替换成图像生成、TTS、视频生成或多模态模型 API。

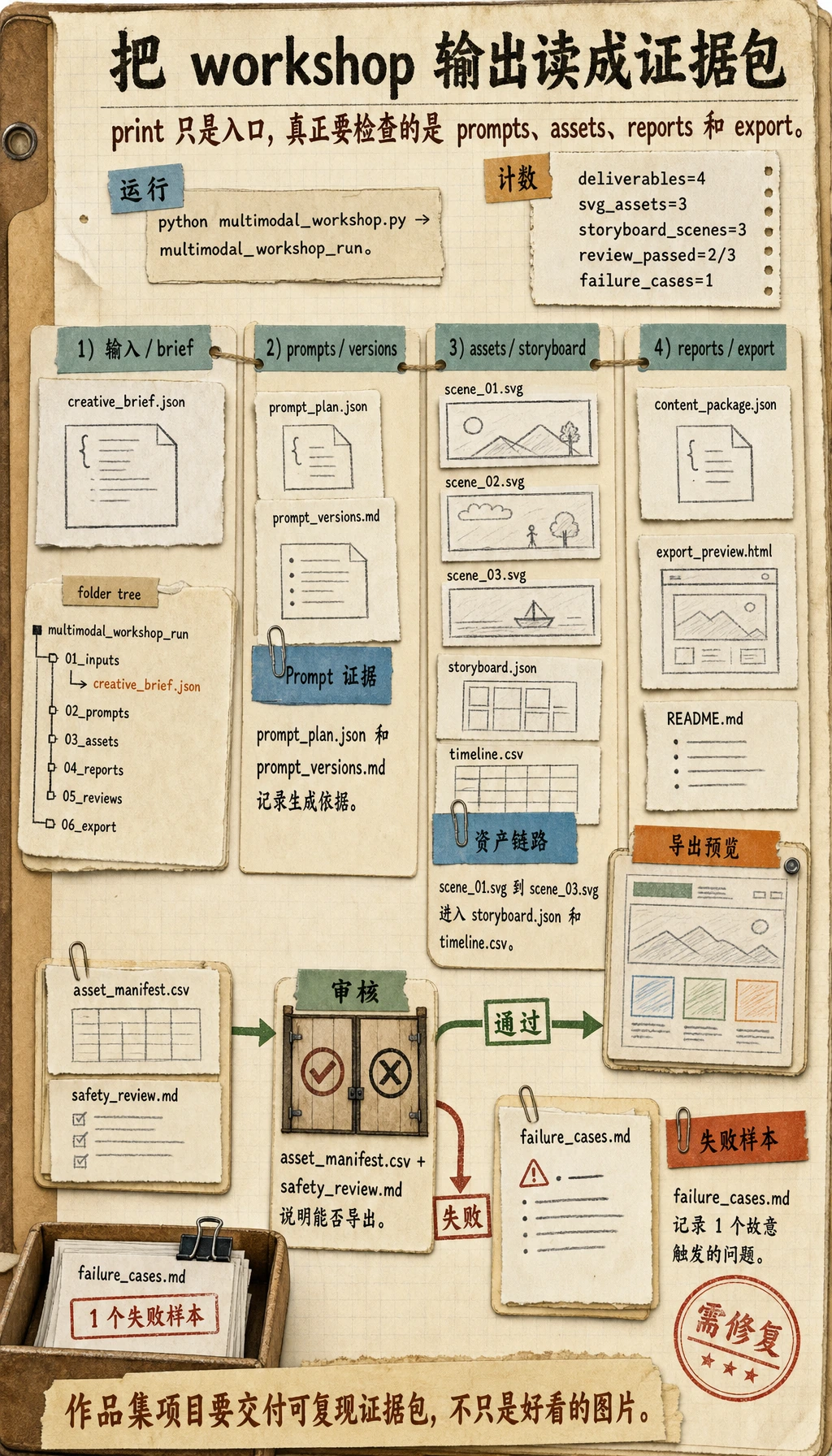

你会构建什么
脚本会创建这个文件夹：
multimodal_workshop_run/
inputs/
creative_brief.json
prompts/
prompt_plan.json
prompt_versions.md
assets/
scene_01.svg
scene_02.svg
scene_03.svg
outputs/
storyboard.json
timeline.csv
content_package.json
export_preview.html
reports/
asset_manifest.csv
safety_review.md
failure_cases.md
README.md
最重要的结果不是 SVG 本身，而是每个生成资产都有 Prompt、来源记录、审核结果、导出边界和失败说明。
Step 0：先看懂产品闭环
实操闭环是：
- 写清创意 brief。
- 把 brief 拆成分镜级 Prompt。
- 生成 baseline 视觉资产。
- 生成 storyboard 和 timeline。
- 检查资产来源、授权、人像风险、对比度和导出限制。
- 导出 HTML 预览和内容包。
- 保存失败案例，供下一轮迭代。
Step 1：创建文件夹和脚本
mkdir multimodal-workshop
cd multimodal-workshop
python3 -m venv .venv
source .venv/bin/activate
不需要 pip install。创建 multimodal_workshop.py，粘贴下面完整脚本。
Step 2：运行完整脚本
from __future__ import annotations
import csv
import html
import json
import shutil
from pathlib import Path
RUN_DIR = Path("multimodal_workshop_run")
if RUN_DIR.exists():
shutil.rmtree(RUN_DIR)
INPUT_DIR = RUN_DIR / "inputs"
PROMPT_DIR = RUN_DIR / "prompts"
ASSET_DIR = RUN_DIR / "assets"
OUTPUT_DIR = RUN_DIR / "outputs"
REPORT_DIR = RUN_DIR / "reports"
for folder in [INPUT_DIR, PROMPT_DIR, ASSET_DIR, OUTPUT_DIR, REPORT_DIR]:
folder.mkdir(parents=True, exist_ok=True)
BRIEF = {
"project_id": "course-launch-multimodal-kit",
"topic": "AI learning assistant launch kit",
"audience": "beginners learning AI full-stack development",
"goal": "create a small content package for a course landing page and short video storyboard",
"tone": "clear, practical, optimistic",
"deliverables": ["poster SVG", "three-shot storyboard", "review checklist", "export preview HTML"],
"constraints": ["no real person likeness", "no external copyrighted assets", "show source and review records"],
}
SCENES = [
{
"id": "scene_01",
"title": "From scattered materials to one learning assistant",
"visual_prompt": "A clean course dashboard combining text notes, screenshots, and voice notes into one AI learning assistant workspace.",
"copy": "Turn scattered study materials into a guided AI learning workflow.",
"duration_sec": 5,
"background": "#f7f3e8",
"accent": "#2563eb",
"text_color": "#1f2937",
"source": "script_generated_svg",
"license": "generated_by_script_for_course_demo",
"uses_real_person": False,
},
{
"id": "scene_02",
"title": "Review before export",
"visual_prompt": "A multimodal review desk with prompt versions, asset records, copyright checks, and export options.",
"copy": "Save prompts, assets, human review, and export limits before sharing.",
"duration_sec": 6,
"background": "#e8eef7",
"accent": "#93c5fd",
"text_color": "#bfdbfe",
"source": "script_generated_svg",
"license": "generated_by_script_for_course_demo",
"uses_real_person": False,
},
{
"id": "scene_03",
"title": "Ready for a portfolio demo",
"visual_prompt": "A final portfolio package showing poster, storyboard, safety checklist, and README ready for presentation.",
"copy": "A usable AIGC project is a workflow, not a single pretty output.",
"duration_sec": 5,
"background": "#ecfdf5",
"accent": "#059669",
"text_color": "#064e3b",
"source": "script_generated_svg",
"license": "generated_by_script_for_course_demo",
"uses_real_person": False,
},
]
REVIEW_RULES = [
"source_recorded",
"license_recorded",
"no_real_person_likeness",
"sufficient_contrast",
"export_limits_written",
]
def write_json(path: Path, data: object) -> None:
path.write_text(json.dumps(data, indent=2, ensure_ascii=False), encoding="utf-8")
def write_csv(path: Path, rows: list[dict[str, object]], fieldnames: list[str]) -> None:
with path.open("w", newline="", encoding="utf-8") as f:
writer = csv.DictWriter(f, fieldnames=fieldnames)
writer.writeheader()
writer.writerows(rows)
def hex_to_rgb(color: str) -> tuple[int, int, int]:
color = color.lstrip("#")
return tuple(int(color[i:i + 2], 16) for i in (0, 2, 4))
def relative_luminance(color: str) -> float:
def channel(value: int) -> float:
value = value / 255
return value / 12.92 if value <= 0.03928 else ((value + 0.055) / 1.055) ** 2.4
r, g, b = (channel(v) for v in hex_to_rgb(color))
return 0.2126 * r + 0.7152 * g + 0.0722 * b
def contrast_ratio(left: str, right: str) -> float:
l1 = relative_luminance(left)
l2 = relative_luminance(right)
lighter = max(l1, l2)
darker = min(l1, l2)
return (lighter + 0.05) / (darker + 0.05)
def wrap_text(text: str, width: int = 46) -> list[str]:
words = text.split()
lines = []
current = ""
for word in words:
trial = f"{current} {word}".strip()
if len(trial) > width and current:
lines.append(current)
current = word
else:
current = trial
if current:
lines.append(current)
return lines
def svg_text_lines(lines: list[str], x: int, y: int, size: int, fill: str) -> str:
chunks = []
for index, line in enumerate(lines):
chunks.append(
f'<text x="{x}" y="{y + index * int(size * 1.35)}" font-size="{size}" fill="{fill}" font-family="Arial, sans-serif">{html.escape(line)}</text>'
)
return "\n".join(chunks)
def create_svg(scene: dict[str, object], path: Path) -> None:
title_lines = wrap_text(str(scene["title"]), 30)
copy_lines = wrap_text(str(scene["copy"]), 44)
prompt_lines = wrap_text(str(scene["visual_prompt"]), 58)
svg = f'''<svg xmlns="http://www.w3.org/2000/svg" width="1200" height="675" viewBox="0 0 1200 675">
<rect width="1200" height="675" fill="{scene['background']}"/>
<rect x="64" y="64" width="1072" height="547" rx="24" fill="#ffffff" opacity="0.86"/>
<circle cx="1000" cy="154" r="74" fill="{scene['accent']}" opacity="0.18"/>
<circle cx="964" cy="204" r="42" fill="{scene['accent']}" opacity="0.28"/>
<rect x="96" y="110" width="236" height="156" rx="18" fill="{scene['accent']}" opacity="0.16"/>
<rect x="126" y="142" width="176" height="18" rx="9" fill="{scene['accent']}" opacity="0.62"/>
<rect x="126" y="178" width="132" height="18" rx="9" fill="{scene['accent']}" opacity="0.42"/>
<rect x="126" y="214" width="154" height="18" rx="9" fill="{scene['accent']}" opacity="0.42"/>
<path d="M370 188 C470 104, 606 104, 706 188 S940 272, 1040 188" fill="none" stroke="{scene['accent']}" stroke-width="12" stroke-linecap="round" opacity="0.48"/>
<rect x="762" y="112" width="256" height="176" rx="22" fill="{scene['accent']}" opacity="0.12"/>
<path d="M806 230 L864 170 L916 222 L946 194 L990 244" fill="none" stroke="{scene['accent']}" stroke-width="10" stroke-linecap="round" stroke-linejoin="round" opacity="0.68"/>
{svg_text_lines(title_lines, 96, 352, 42, scene['text_color'])}
{svg_text_lines(copy_lines, 96, 458, 28, scene['text_color'])}
<rect x="96" y="548" width="1008" height="38" rx="19" fill="#111827" opacity="0.06"/>
{svg_text_lines(prompt_lines, 118, 574, 18, '#374151')}
</svg>
'''
path.write_text(svg, encoding="utf-8")
def build_prompt_plan(brief: dict[str, object], scenes: list[dict[str, object]]) -> list[dict[str, object]]:
plan = []
for index, scene in enumerate(scenes, start=1):
plan.append({
"version": f"v{index}",
"scene_id": scene["id"],
"task": "image_generation_prompt",
"prompt": scene["visual_prompt"],
"negative_prompt": "no real person likeness, no brand logo, no copyrighted character, no unreadable text",
"size": "1200x675",
"style": brief["tone"],
"status": "ready_for_model_or_svg_baseline",
})
return plan
def review_scene(scene: dict[str, object]) -> tuple[dict[str, object], list[str]]:
contrast = contrast_ratio(str(scene["background"]), str(scene["text_color"]))
checks = {
"source_recorded": bool(scene.get("source")),
"license_recorded": bool(scene.get("license")),
"no_real_person_likeness": not bool(scene.get("uses_real_person")),
"sufficient_contrast": contrast >= 4.5,
"export_limits_written": True,
}
failures = [name for name, passed in checks.items() if not passed]
return {
"scene_id": scene["id"],
"title": scene["title"],
"source": scene["source"],
"license": scene["license"],
"contrast_ratio": round(contrast, 2),
"passed": not failures,
**checks,
}, failures
def build_storyboard(scenes: list[dict[str, object]]) -> list[dict[str, object]]:
elapsed = 0
storyboard = []
for scene in scenes:
start = elapsed
end = start + int(scene["duration_sec"])
elapsed = end
storyboard.append({
"scene_id": scene["id"],
"start_sec": start,
"end_sec": end,
"visual": scene["visual_prompt"],
"voiceover": scene["copy"],
"asset_file": f"assets/{scene['id']}.svg",
})
return storyboard
def build_html_preview(brief: dict[str, object], scenes: list[dict[str, object]], review_rows: list[dict[str, object]]) -> str:
cards = []
for scene, review in zip(scenes, review_rows):
status = "PASS" if review["passed"] else "REVIEW"
cards.append(f'''
<section class="card">
<img src="../assets/{scene['id']}.svg" alt="{html.escape(str(scene['title']))}">
<h2>{html.escape(str(scene['title']))}</h2>
<p>{html.escape(str(scene['copy']))}</p>
<p><strong>Review:</strong> {status} | contrast {review['contrast_ratio']}</p>
</section>''')
return f'''<!doctype html>
<html lang="en">
<head>
<meta charset="utf-8">
<title>{html.escape(str(brief['topic']))}</title>
<style>
body {{ font-family: Arial, sans-serif; margin: 0; background: #f8fafc; color: #111827; }}
main {{ max-width: 960px; margin: 0 auto; padding: 32px; }}
.card {{ background: white; border: 1px solid #e5e7eb; border-radius: 8px; padding: 18px; margin-bottom: 18px; }}
img {{ width: 100%; border-radius: 6px; border: 1px solid #e5e7eb; }}
</style>
</head>
<body>
<main>
<h1>{html.escape(str(brief['topic']))}</h1>
<p>{html.escape(str(brief['goal']))}</p>
{''.join(cards)}
</main>
</body>
</html>
'''
def main() -> None:
write_json(INPUT_DIR / "creative_brief.json", BRIEF)
prompt_plan = build_prompt_plan(BRIEF, SCENES)
write_json(PROMPT_DIR / "prompt_plan.json", prompt_plan)
prompt_md = ["# Prompt Versions", ""]
for item in prompt_plan:
prompt_md.append(f"## {item['version']} - {item['scene_id']}")
prompt_md.append(f"- Prompt: {item['prompt']}")
prompt_md.append(f"- Negative prompt: {item['negative_prompt']}")
prompt_md.append(f"- Status: {item['status']}")
prompt_md.append("")
(PROMPT_DIR / "prompt_versions.md").write_text("\n".join(prompt_md), encoding="utf-8")
review_rows = []
failure_cases = []
for scene in SCENES:
asset_path = ASSET_DIR / f"{scene['id']}.svg"
create_svg(scene, asset_path)
review, failures = review_scene(scene)
review_rows.append(review)
if failures:
failure_cases.append({
"scene_id": scene["id"],
"title": scene["title"],
"failures": failures,
"suspected_cause": "visual design or missing asset metadata does not meet export rules",
"fix_action": "adjust colors, source records, license notes, or review thresholds, then rerun the script",
})
write_csv(REPORT_DIR / "asset_manifest.csv", review_rows, ["scene_id", "title", "source", "license", "contrast_ratio", "passed", *REVIEW_RULES])
storyboard = build_storyboard(SCENES)
write_json(OUTPUT_DIR / "storyboard.json", storyboard)
write_csv(OUTPUT_DIR / "timeline.csv", storyboard, ["scene_id", "start_sec", "end_sec", "visual", "voiceover", "asset_file"])
write_json(OUTPUT_DIR / "content_package.json", {"brief": BRIEF, "prompts": prompt_plan, "storyboard": storyboard, "review": review_rows})
(OUTPUT_DIR / "export_preview.html").write_text(build_html_preview(BRIEF, SCENES, review_rows), encoding="utf-8")
safety_lines = ["# Safety Review", "", "| Scene | Source | License | Contrast | Result |", "|---|---|---|---:|---|"]
for row in review_rows:
result = "PASS" if row["passed"] else "NEEDS REVIEW"
safety_lines.append(f"| {row['scene_id']} | {row['source']} | {row['license']} | {row['contrast_ratio']} | {result} |")
safety_lines.append("")
safety_lines.append("Export limits: course demo only; replace SVG baseline assets with reviewed model outputs before public release.")
(REPORT_DIR / "safety_review.md").write_text("\n".join(safety_lines), encoding="utf-8")

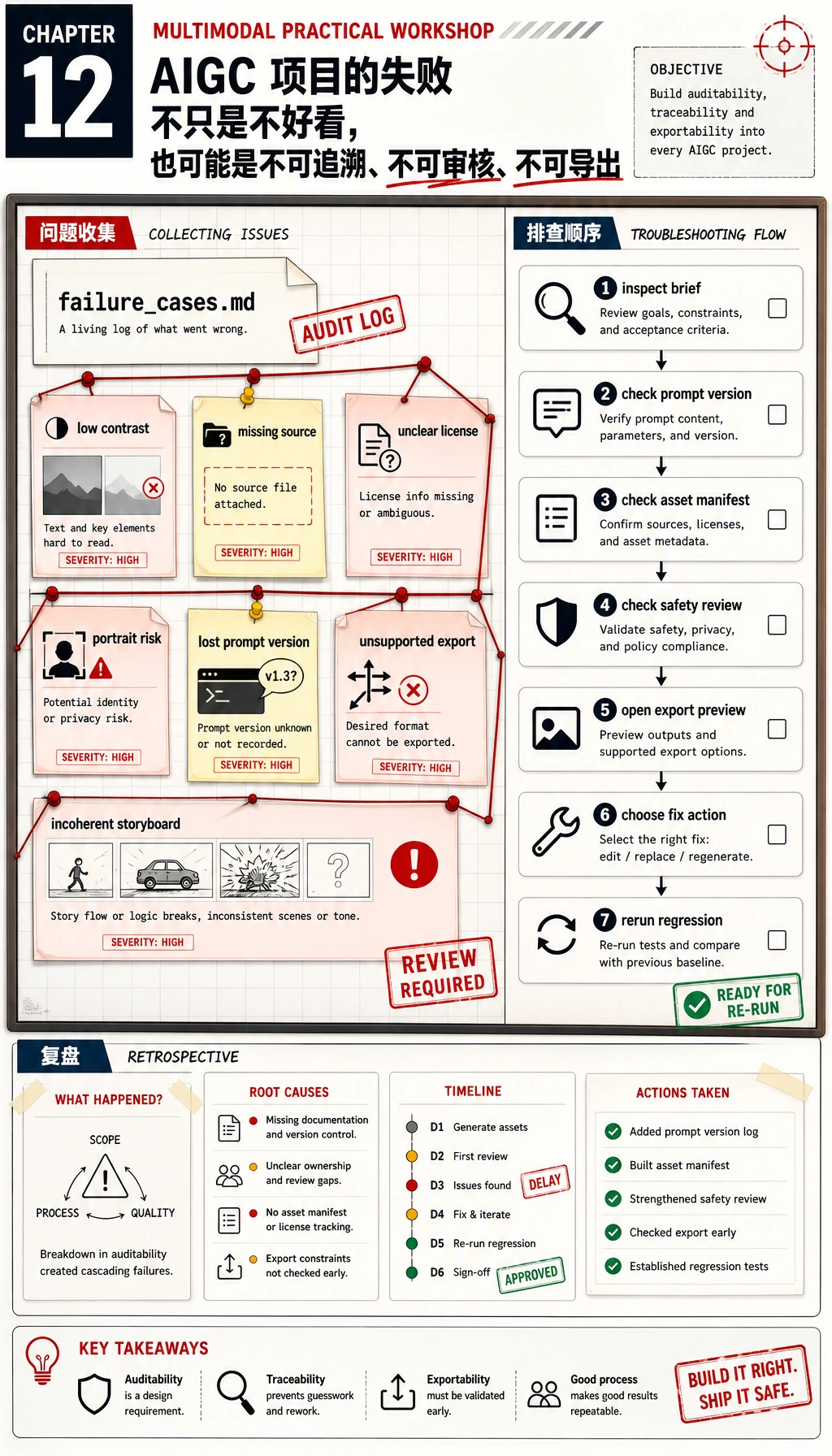

failure_lines = ["# Failure Cases", ""]
if not failure_cases:
failure_lines.append("No failure cases were triggered. Add a boundary sample before using this as a portfolio report.")
for index, case in enumerate(failure_cases, start=1):
failure_lines.append(f"## Case {index}: {case['scene_id']}")
failure_lines.append(f"- Title: {case['title']}")
failure_lines.append(f"- Failures: {', '.join(case['failures'])}")
failure_lines.append(f"- Suspected cause: {case['suspected_cause']}")
failure_lines.append(f"- Fix action: {case['fix_action']}")
failure_lines.append("")
(REPORT_DIR / "failure_cases.md").write_text("\n".join(failure_lines), encoding="utf-8")
readme = f"""# Multimodal Workshop Run
Run command:
~~~bash
python multimodal_workshop.py
~~~
Artifacts:
- inputs/creative_brief.json
- prompts/prompt_plan.json and prompts/prompt_versions.md
- assets/*.svg
- outputs/storyboard.json
- outputs/export_preview.html
- reports/asset_manifest.csv
- reports/safety_review.md
- reports/failure_cases.md
Summary:
- scenes: {len(SCENES)}
- generated_svg_assets: {len(list(ASSET_DIR.glob('*.svg')))}
- review_passed: {sum(1 for row in review_rows if row['passed'])}/{len(review_rows)}
- failure_cases: {len(failure_cases)}
"""
(RUN_DIR / "README.md").write_text(readme, encoding="utf-8")
print("STEP 1: project brief")
print(f"topic: {BRIEF['topic']}")
print(f"deliverables: {len(BRIEF['deliverables'])}")
print("")
print("STEP 2: generated assets")
print(f"svg_assets: {len(list(ASSET_DIR.glob('*.svg')))}")
print(f"storyboard_scenes: {len(storyboard)}")
print(f"review_passed: {sum(1 for row in review_rows if row['passed'])}/{len(review_rows)}")
print(f"failure_cases: {len(failure_cases)}")
print("")
print("STEP 3: files to inspect")
print(f"prompt_plan: {PROMPT_DIR / 'prompt_plan.json'}")
print(f"asset_manifest: {REPORT_DIR / 'asset_manifest.csv'}")
print(f"safety_review: {REPORT_DIR / 'safety_review.md'}")
print(f"export_preview: {OUTPUT_DIR / 'export_preview.html'}")
if __name__ == "__main__":
main()
运行：
python multimodal_workshop.py
预期输出：
STEP 1: project brief
topic: AI learning assistant launch kit
deliverables: 4
STEP 2: generated assets
svg_assets: 3
storyboard_scenes: 3
review_passed: 2/3
failure_cases: 1
STEP 3: files to inspect
prompt_plan: multimodal_workshop_run/prompts/prompt_plan.json
asset_manifest: multimodal_workshop_run/reports/asset_manifest.csv
safety_review: multimodal_workshop_run/reports/safety_review.md
export_preview: multimodal_workshop_run/outputs/export_preview.html
Step 3：检查 Brief 和 Prompt 记录
打开 inputs/creative_brief.json。这是结构化后的用户需求：主题、受众、目标、语气、交付物和约束。
再打开 prompts/prompt_plan.json 和 prompts/prompt_versions.md。真实 AIGC 项目不能在图片或视频生成后丢掉 Prompt。Prompt 本身就是项目证据的一部分。
Step 4：检查资产和分镜
用浏览器打开 assets/scene_01.svg、assets/scene_02.svg 和 assets/scene_03.svg。它们是脚本生成的基线 SVG 素材，在工作流里扮演“生成结果”的角色。
打开 outputs/storyboard.json 和 outputs/timeline.csv。这些文件说明视觉资产如何组成短视频或落地页顺序。
Step 5：阅读审核文件
打开 reports/asset_manifest.csv。每一行记录：
| 字段 | 含义 |
|---|---|
source | 资产来源 |
license | 资产是否能用于这个 demo |
contrast_ratio | 文本是否足够可读 |
passed | 是否可以进入导出 |
然后打开 reports/safety_review.md。这个文件用于记录版权、人像权、内容安全和导出边界。
Step 6：打开导出预览
用浏览器打开 outputs/export_preview.html。它不是完整应用，但能证明项目已经从创意需求走到可导出的内容包。
真实升级时，可以替换这些模块：
| Baseline 模块 | 真实项目替换 |
|---|---|
| 基线 SVG 素材 | 图像生成 API 或本地图像模型 |
| Storyboard JSON | 视频生成工作流 |
| 文案文本 | LLM 生成文案加人工审核 |
| Safety checklist | 人工审核加策略检查 |
| HTML preview | 前端创意工作台 |
Step 7：阅读失败报告
打开 reports/failure_cases.md。这个练习故意让一个 scene 没通过对比度检查。这样做有用，因为作品集项目要展示你如何发现问题，而不是只展示好看的输出。
每个失败案例都问：
- 素材来源是否记录？
- 授权或使用范围是否清楚？
- 资产是否有人像或品牌风险？
- 生成内容是否可读、可导出？
- 项目是否写明发布前必须人工确认的内容？
常见错误
| 现象 | 可能原因 | 修复方向 |
|---|---|---|
| 生成资产无法复用 | 没有来源或授权记录 | 增加 asset_manifest.csv，逐个审核资产 |
| Prompt 版本丢失 | Prompt 只留在聊天记录里 | 生成前保存 prompt_plan.json |
| 视频脚本不连贯 | 没有 storyboard 或 timeline | 先写 storyboard.json 再生成 |
| 结果好看但不能发布 | 没有版权、人像或安全审核 | 增加 safety_review.md 和导出限制 |
| 用户不能比较版本 | 资产互相覆盖 | 增加 scene id、prompt version 和输出目录 |
练习任务
- 修复
scene_02配色，让所有场景通过对比度审核。 - 新增
scene_04，并扩展 storyboard timeline。 - 给 safety review 增加
manual_reviewer字段。 - 用你喜欢的图像模型生成一张图替换某个 SVG，但保留同样的 manifest 和 review 文件。
- 新增一个故意有风险的资产，确认它进入
failure_cases.md。
完成标准
完成本练习后，你应该能解释：
- creative brief 控制什么；
- 为什么 Prompt 和资产需要版本记录；
- storyboard 如何把资产组织成视频或页面顺序；
- 为什么安全审核是工作流的一部分，而不是最后补丁；
- 哪些文件能证明项目可复现。
这是第 12 章最小但有用的 baseline：一个能生成、审核、导出并讲清楚的多模态项目。
