7.8.4 Hands-on: Full Chapter 7 Workshop

This workshop is the practical thread for the whole chapter. If you feel the chapter has many concepts, run this page once from top to bottom. You will not train a large model here. Instead, you will build the smallest repeatable workflow that connects tokens, request payloads, prompt versions, structured output validation, evaluation, the Prompt/RAG/fine-tuning decision, and a small evidence pack you can review afterward.

Learning rhythm

Follow this order on each step: look at the picture, run or read the code, then check the printed result. If a concept is still vague, come back to the picture and trace the data flow with your finger.

What you will build

By the end, you will have one runnable Python file that can:

1. Turn learner requests into simple tokens, token ids, and a tiny vector trace.
2. Compare three prompt versions on fixed test cases.
3. Validate whether model-like output is real JSON with required fields.
4. Decide whether a task should start with Prompt, structured output, RAG, or a fine-tuning plan.
5. Save token traces, prompt evaluation results, route decisions, failure cases, and a README into one local evidence folder.
6. Explain the output like an engineer: what failed, why it failed, and what you would change next.

The code intentionally uses only the Python standard library. That keeps the first run friendly for beginners and also makes the engineering idea clear before you connect a real model API.

Visual checkpoint: the whole route

Before touching code, place these chapter diagrams in order. They are not decoration; they are the map for the workshop.

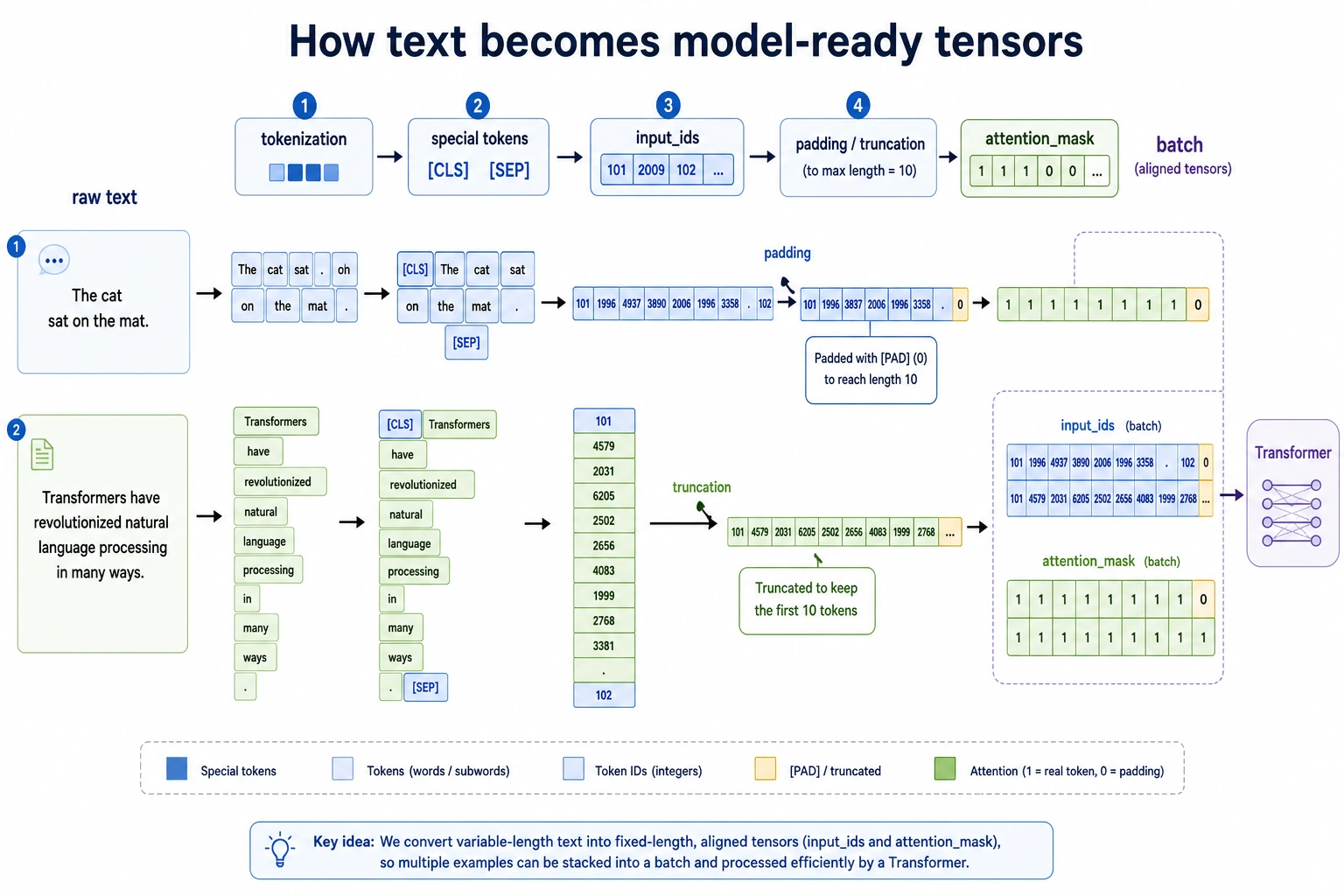

First, text must become tokens and ids before a model can process it.

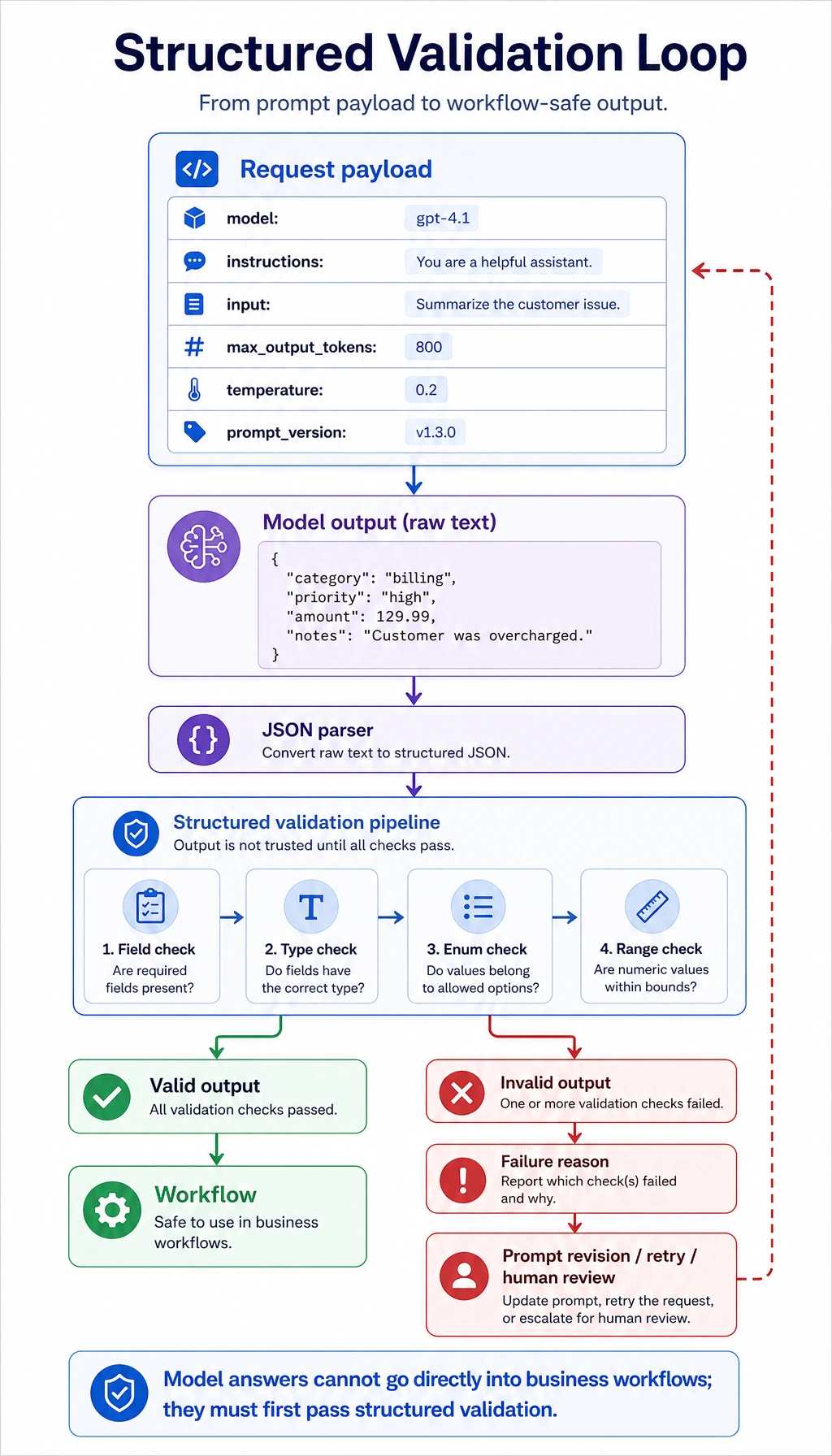

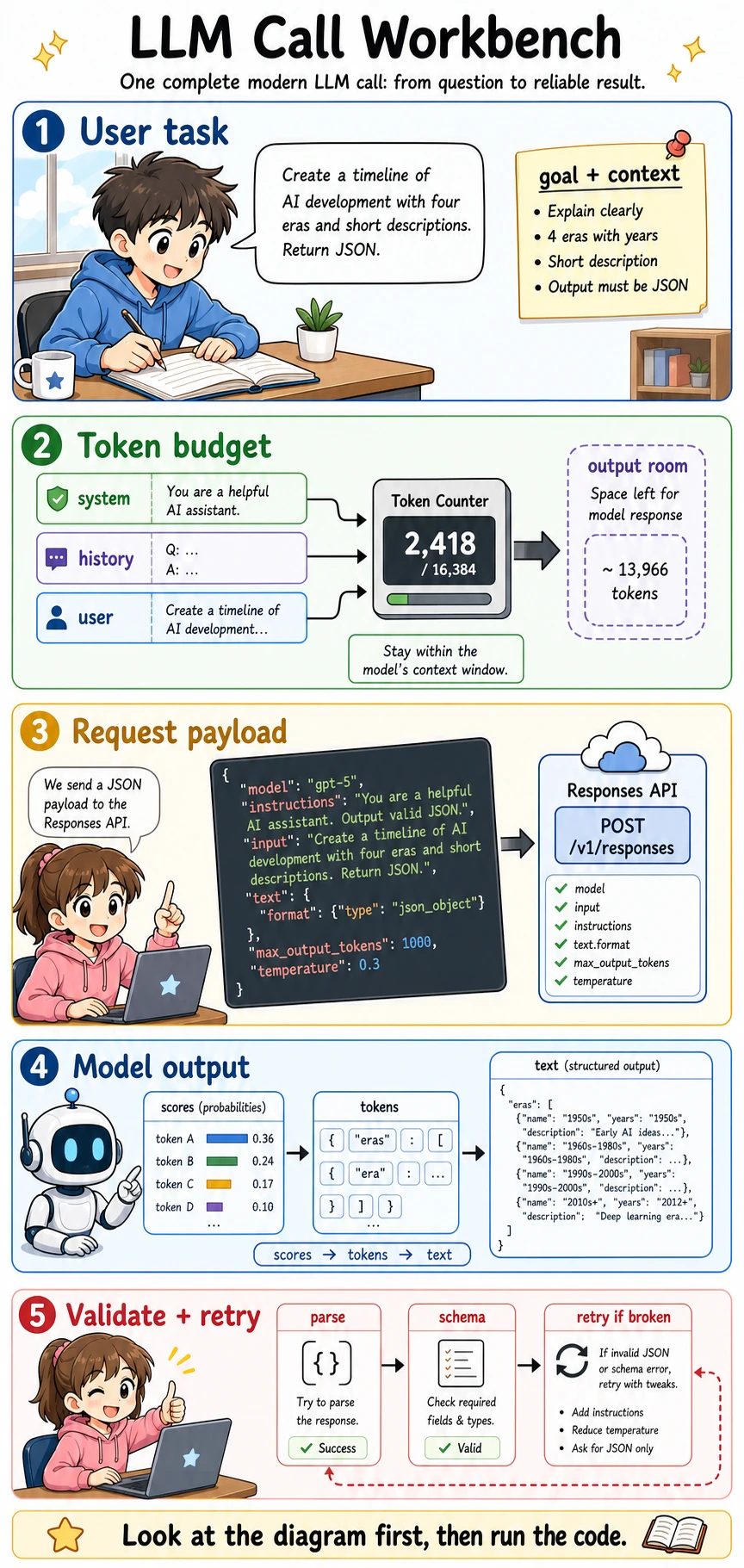

Then, a model call is a request payload, not just a sentence typed into a chat box.

Next, production code must parse and validate the model output.

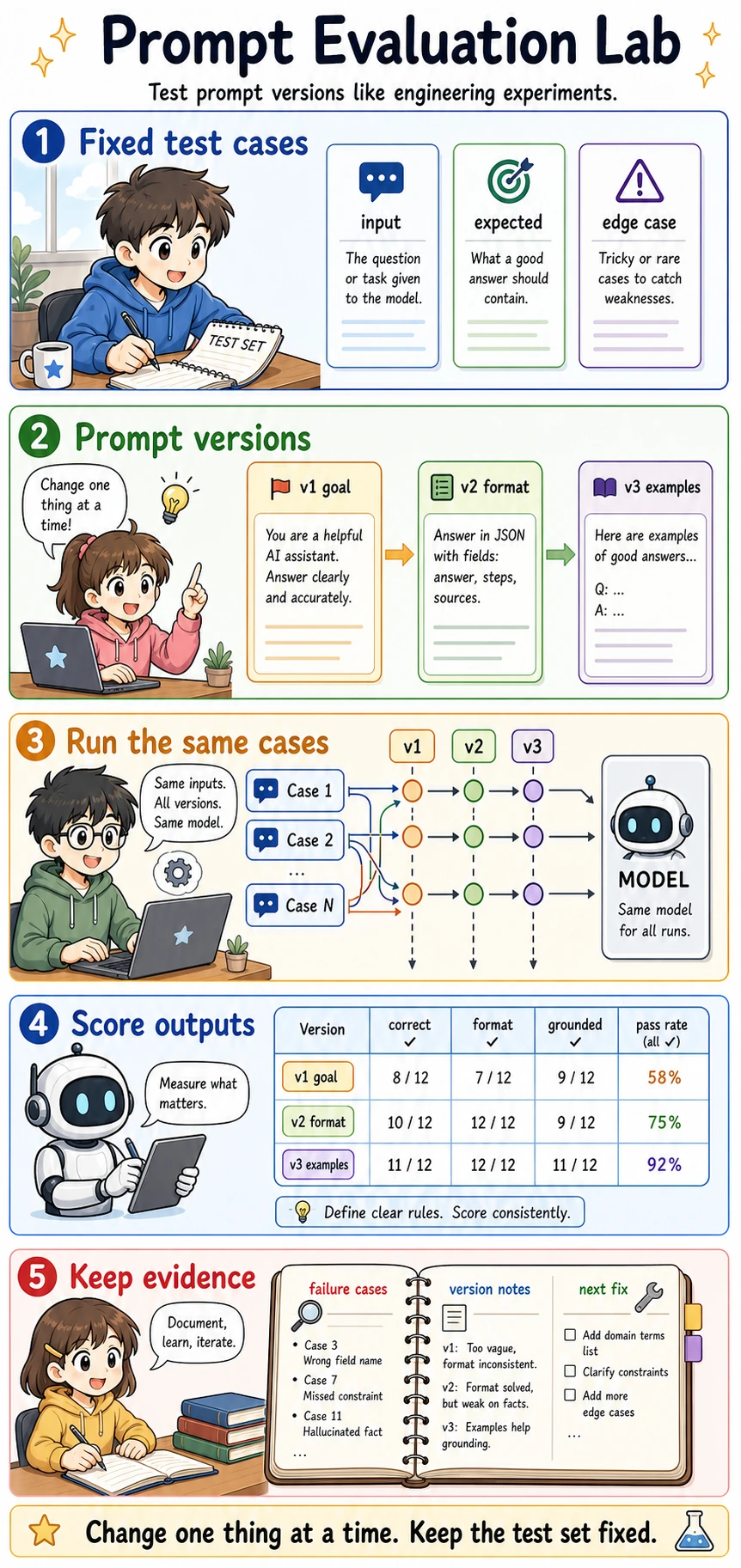

After that, prompt changes should be tested with fixed cases instead of judged by feeling.

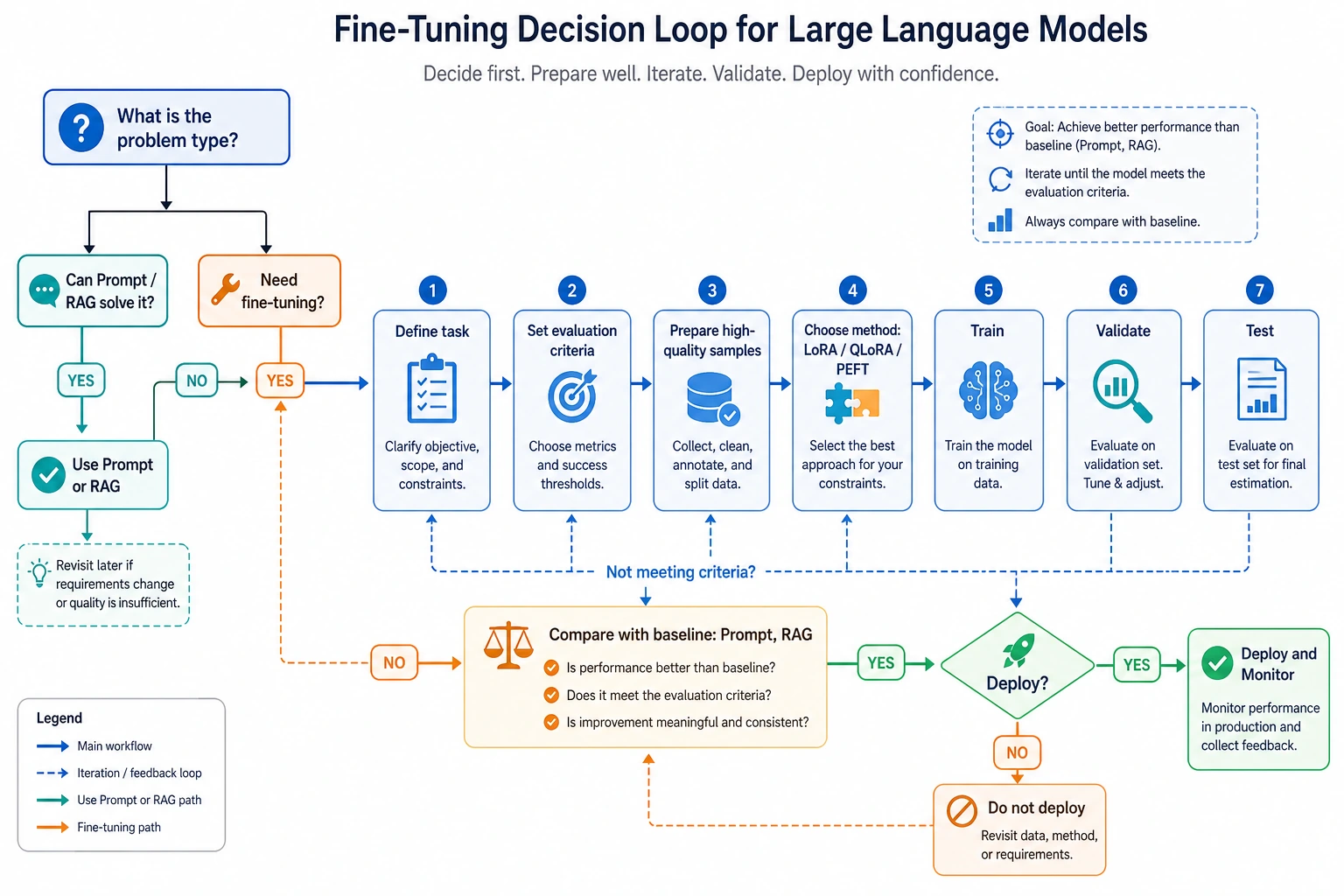

Finally, do not jump to fine-tuning. First decide what kind of problem you actually have.

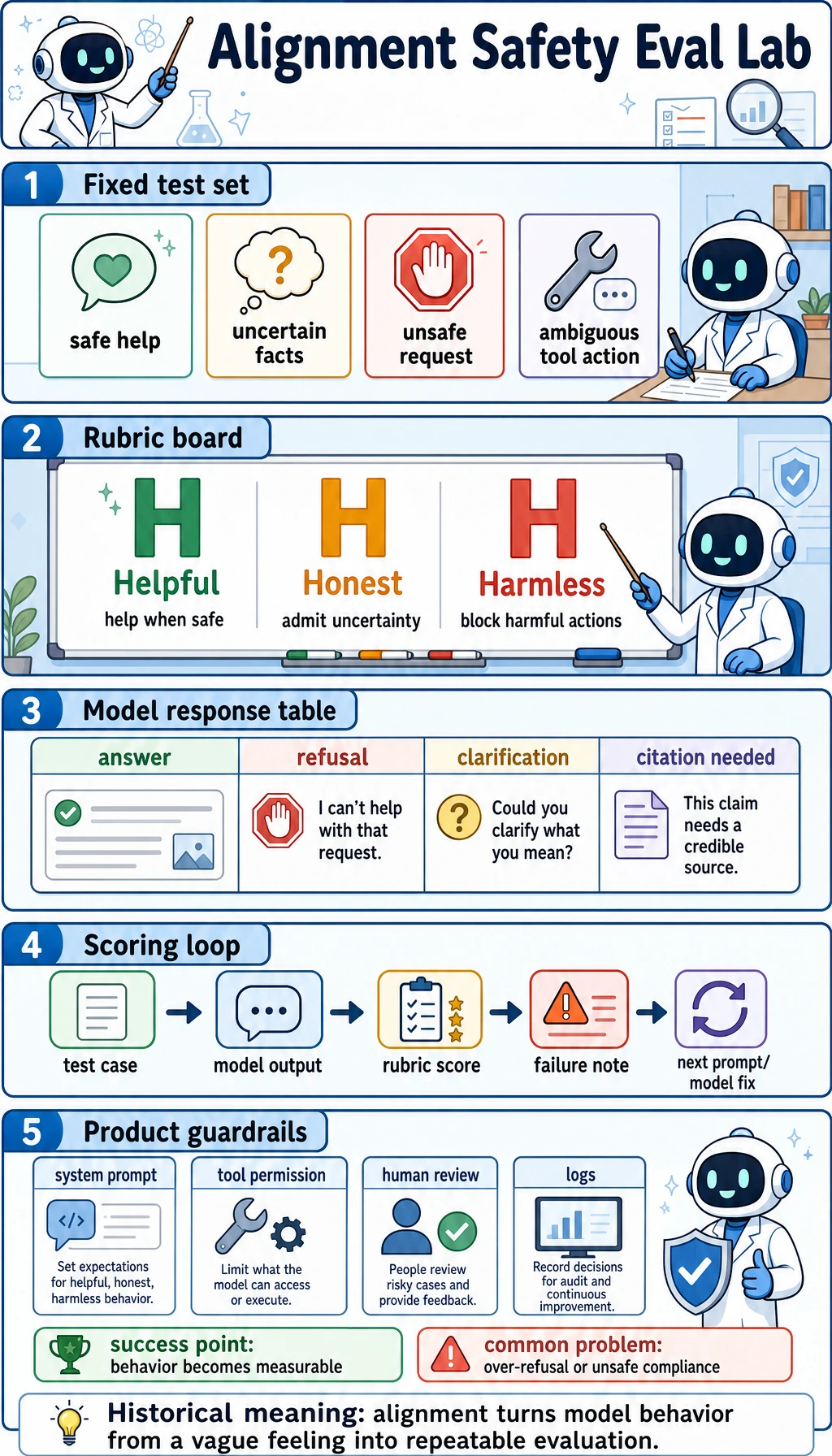

For risky tasks, add behavior evaluation and human review boundaries.

Now use these workshop-specific diagrams as your running checklist.

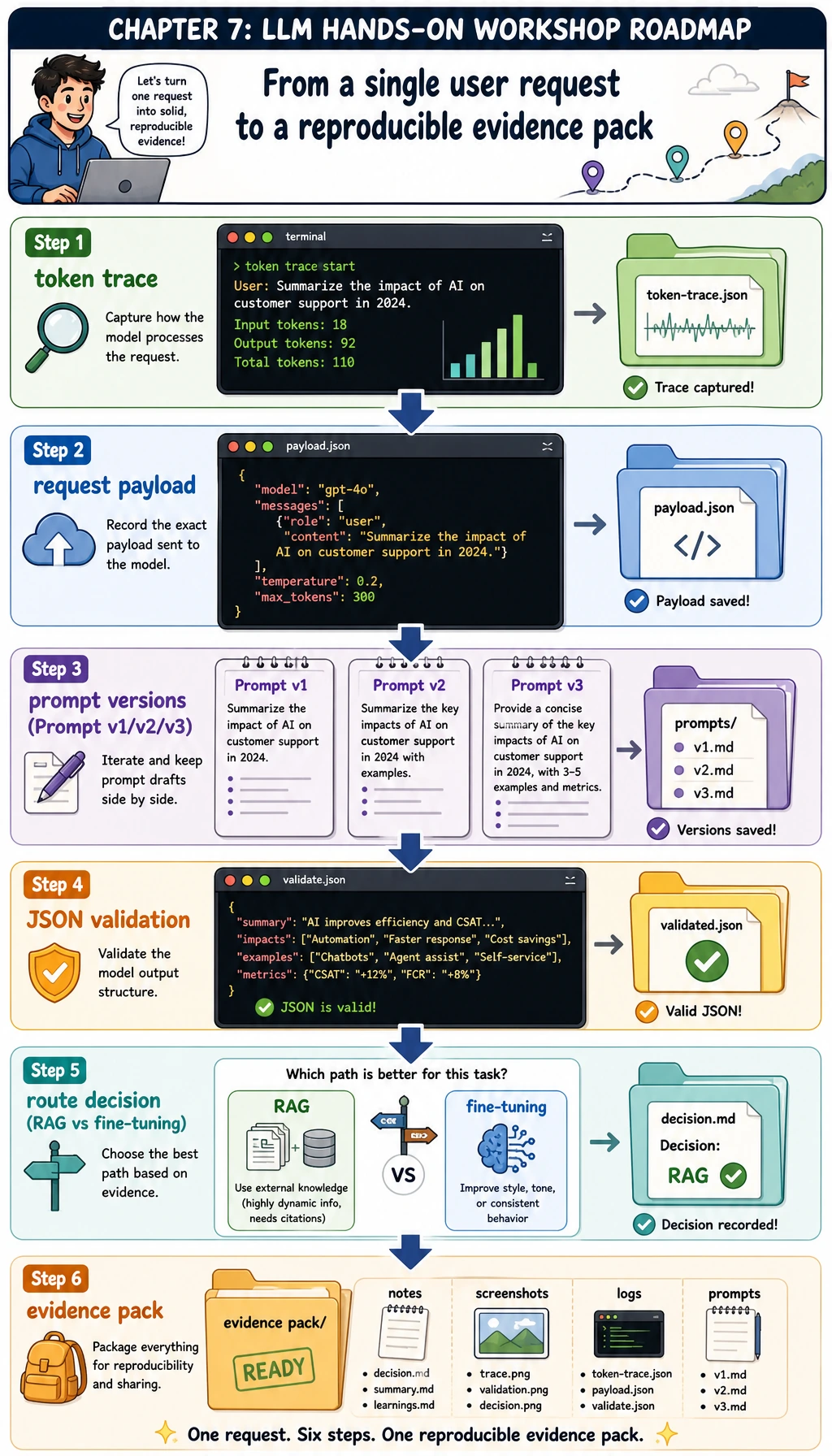

This is the route you will follow in the file: tokens, payloads, prompt versions, validation, route choice, and evidence.

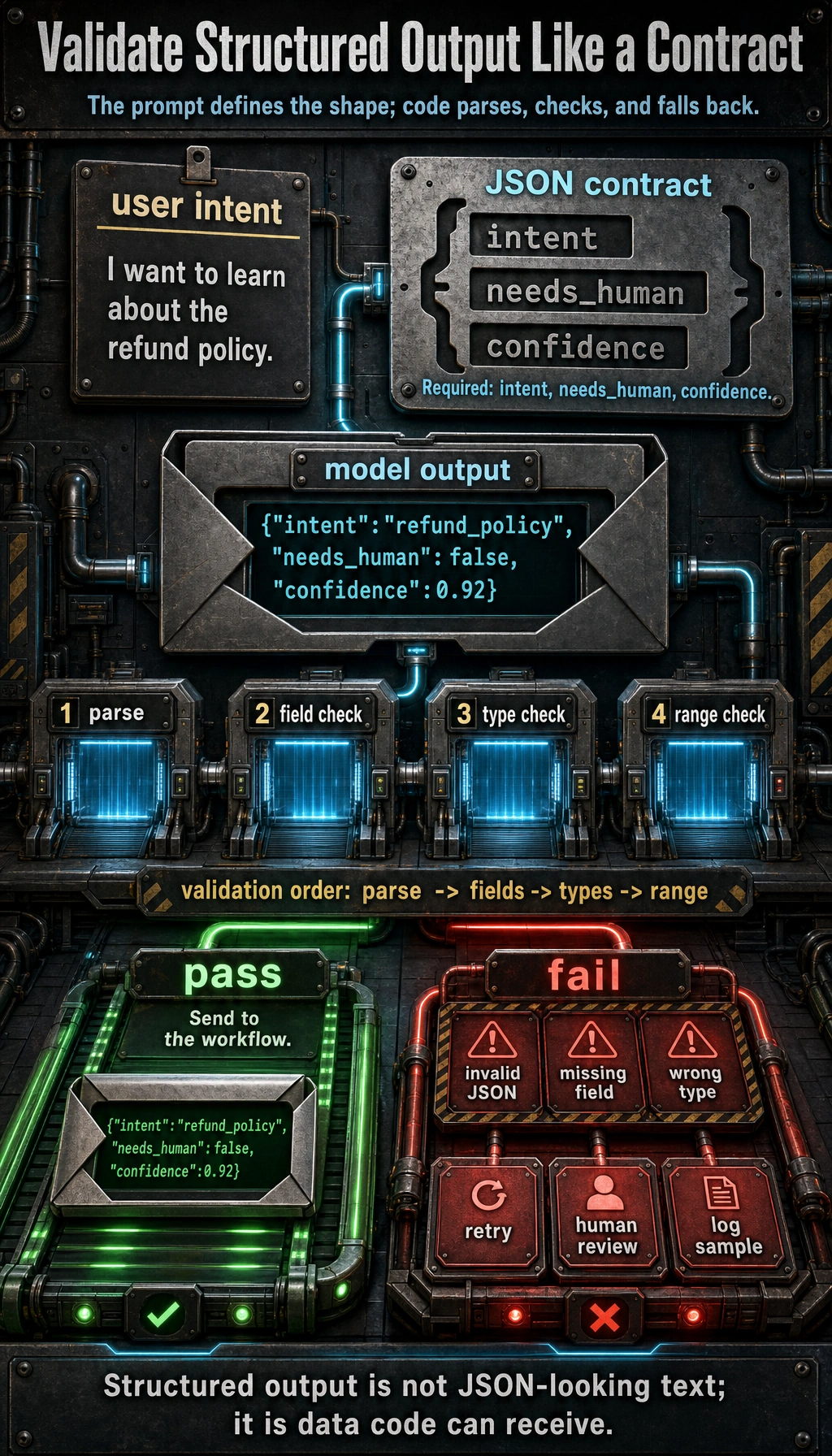

Every model-like answer must pass through a parser and field/type checks before the program trusts it.

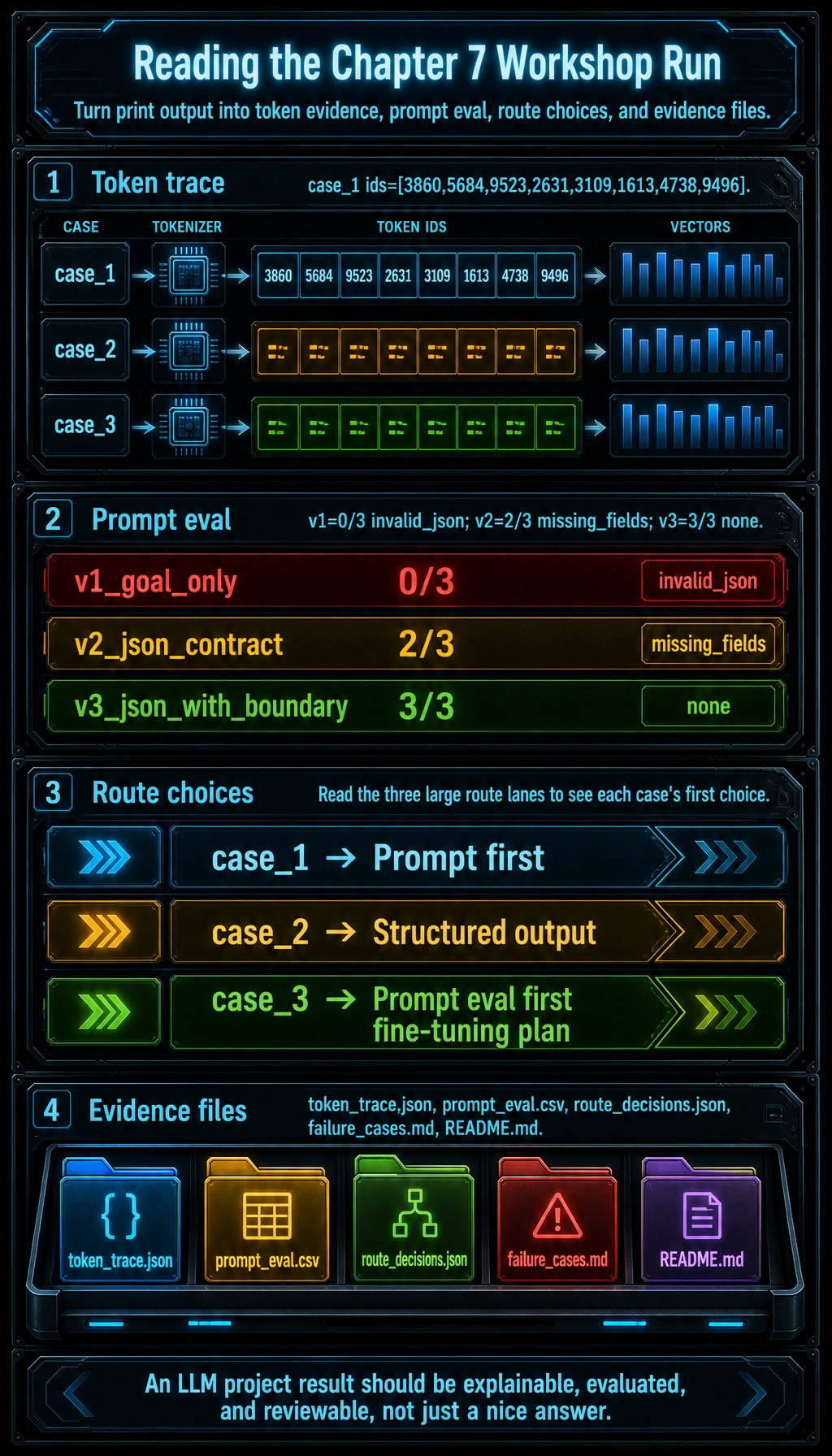

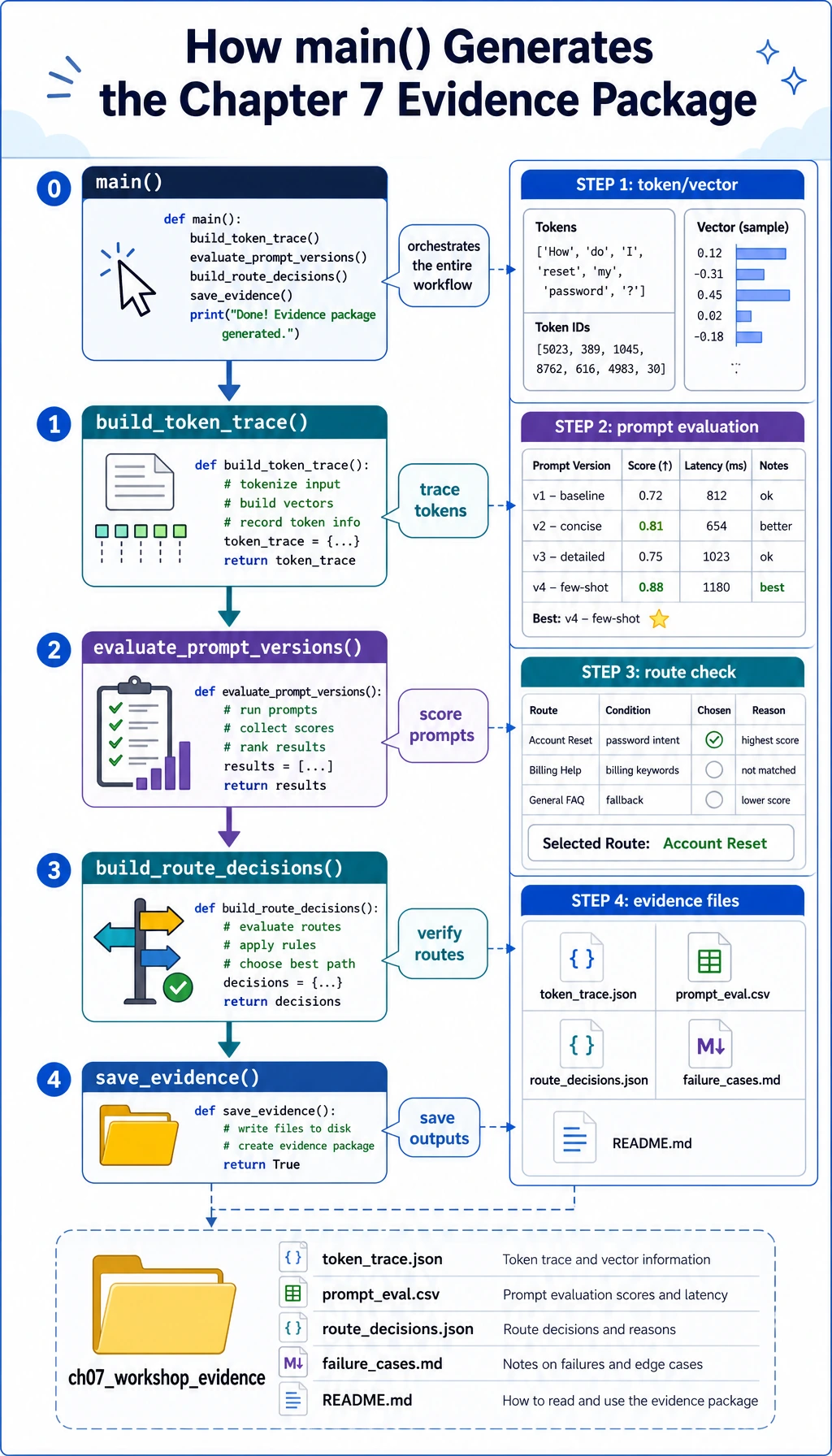

When the script runs, it first builds traces, then evaluates prompts, then chooses solution routes, then saves files.

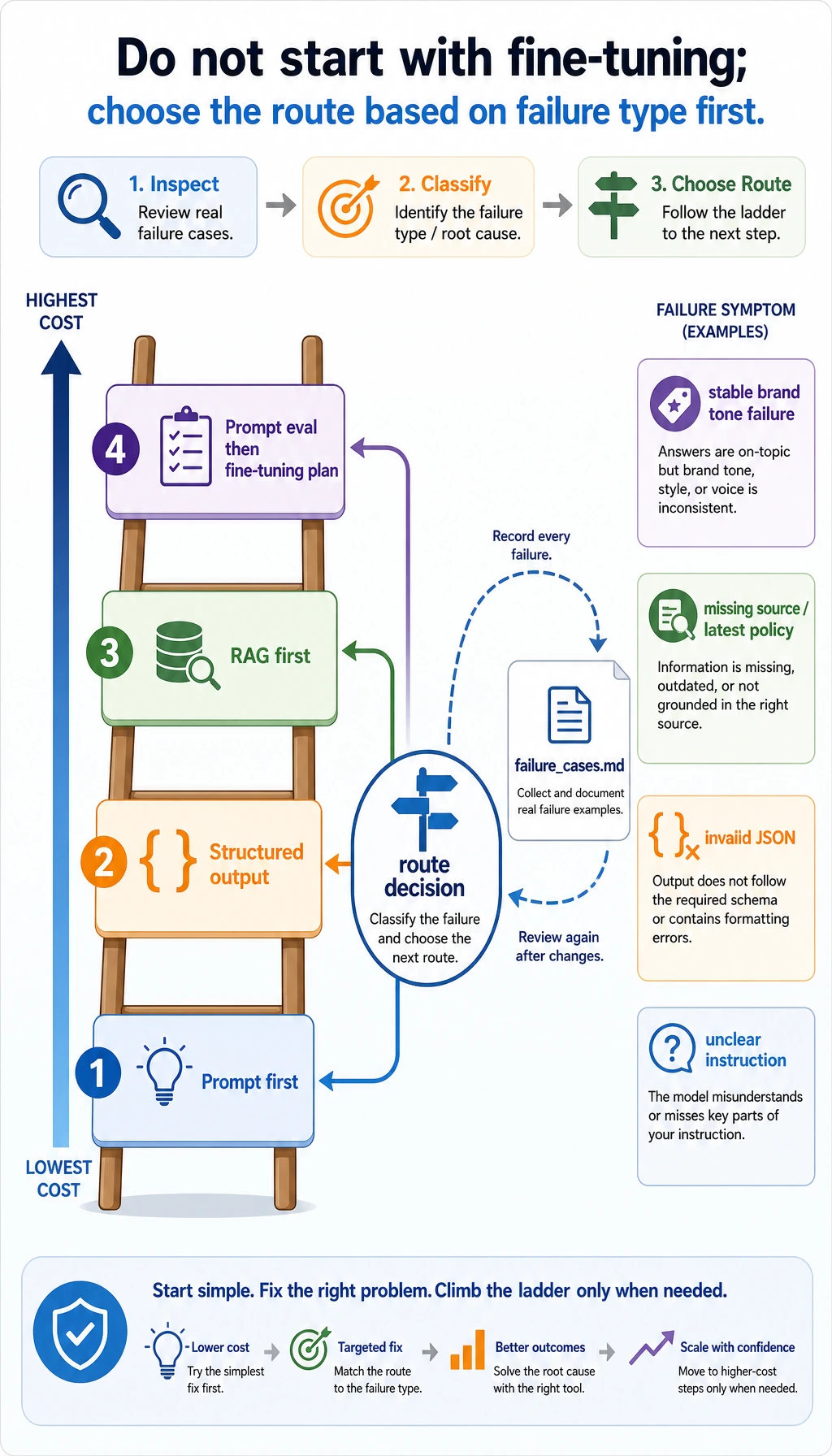

Do not jump to fine-tuning. Look at the failure type first and choose the cheapest reliable route.

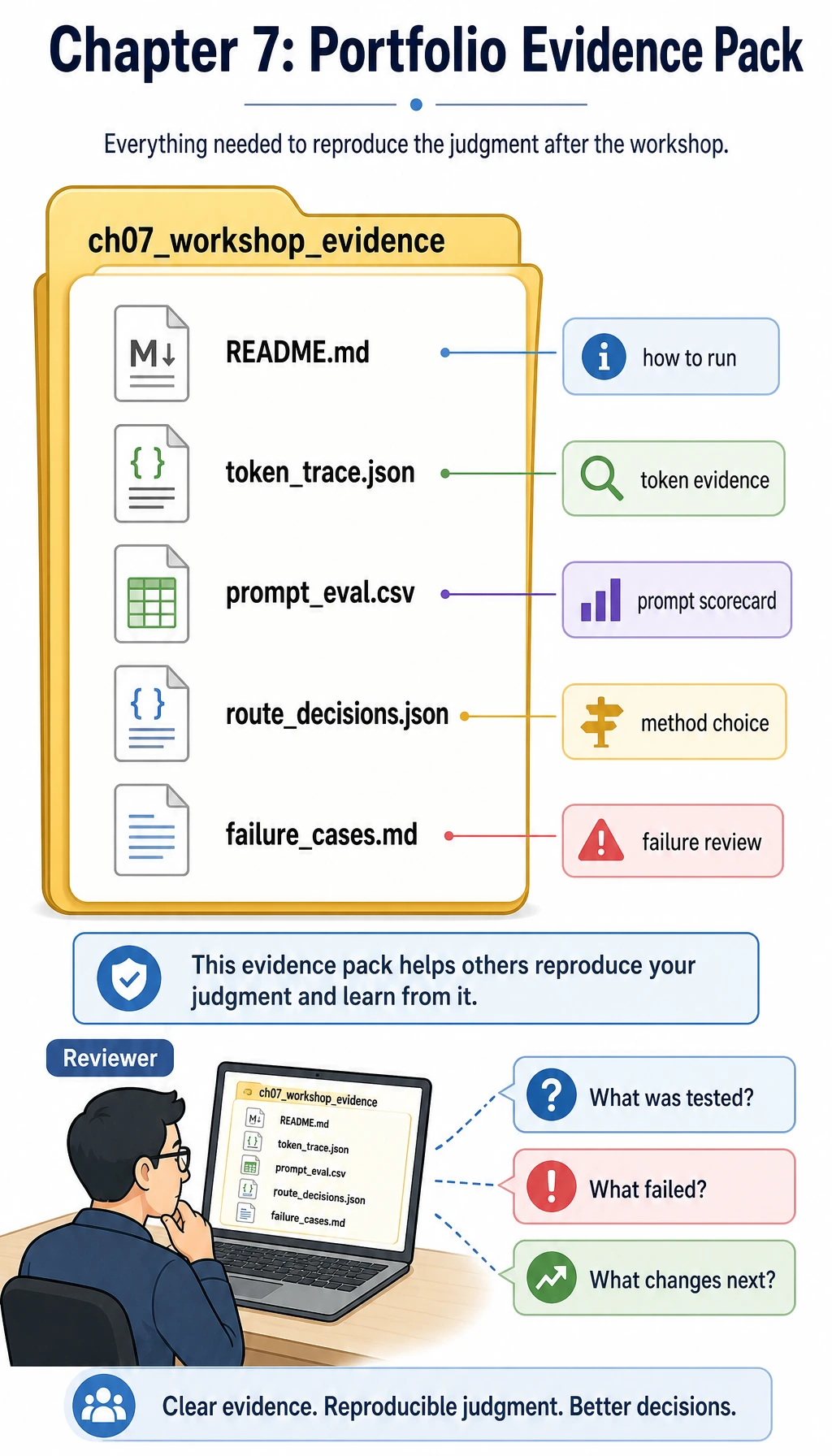

The final folder is part of the lesson: it makes the run reproducible and reviewable.

Create the project folder

Create a small local folder for this workshop:

mkdir ch07_hands_on
cd ch07_hands_on

Then create a file named llm_stage_workshop.py.

After you run it, the script will also create a folder named ch07_workshop_evidence. If the folder already exists, the files inside it will be overwritten with the newest run.

Paste and run the workshop code

Save the following code into llm_stage_workshop.py:

import csv
import json
import math
import hashlib
from pathlib import Path


SAMPLES = [
    {
        "id": "case_1",
        "user_input": "I understand tokens but not attention. Give me a short study plan.",
        "expected_intent": "learning_plan",
    },
    {
        "id": "case_2",
        "user_input": "Convert this note into JSON fields: topic=LoRA, risk=overfitting.",
        "expected_intent": "structured_output",
    },
    {
        "id": "case_3",
        "user_input": "Our assistant keeps using the wrong brand tone. Should we fine-tune?",
        "expected_intent": "solution_choice",
    },
]

INTENTS = {"learning_plan", "structured_output", "solution_choice"}
EVIDENCE_DIR = Path("ch07_workshop_evidence")


def simple_tokenize(text):
    cleaned = "".join(ch.lower() if ch.isalnum() else " " for ch in text)
    return [token for token in cleaned.split() if token]


def stable_token_id(token):
    digest = hashlib.sha1(token.encode("utf-8")).hexdigest()
    return int(digest[:6], 16) % 10000


def tiny_embedding(tokens, width=6):
    vector = [0.0] * width
    for token in tokens:
        vector[stable_token_id(token) % width] += 1.0
    norm = math.sqrt(sum(value * value for value in vector)) or 1.0
    return [round(value / norm, 3) for value in vector]


def infer_intent(text):
    lowered = text.lower()
    if "json" in lowered or "field" in lowered or "schema" in lowered:
        return "structured_output"
    if "fine-tune" in lowered or "brand tone" in lowered or "rag" in lowered:
        return "solution_choice"
    return "learning_plan"


def build_payload(case, prompt_version):
    base = {
        "model": "gpt-5.5",
        "input": case["user_input"],
        "max_output_tokens": 180,
        "temperature": 0.2,
        "prompt_version": prompt_version,
    }
    if prompt_version == "v1_goal_only":
        base["instructions"] = "Help the learner."
    elif prompt_version == "v2_json_contract":
        base["instructions"] = (
            "Classify the learner request. Return JSON with id, intent, action, "
            "confidence, and needs_human_review."
        )
    else:
        base["instructions"] = (
            "Classify the learner request. Return JSON only. Allowed intent values: "
            "learning_plan, structured_output, solution_choice. confidence must be a "
            "number from 0 to 1. needs_human_review must be true only when the request "
            "asks for unsafe, legal, medical, or production deployment decisions."
        )
    return base


def fake_model(payload, case):
    intent = infer_intent(payload["input"])
    if payload["prompt_version"] == "v1_goal_only":
        return "Here is a helpful answer, but it is not machine-readable."
    if payload["prompt_version"] == "v2_json_contract" and case["id"] == "case_3":
        return json.dumps({"id": case["id"], "intent": "fine_tune", "action": "try fine-tuning"})
    action_by_intent = {
        "learning_plan": "Start with tokens, then attention, then run the LLM call workbench.",
        "structured_output": "Define the JSON schema first, then validate every model output.",
        "solution_choice": "Run prompt evaluation first; consider fine-tuning only after stable failures repeat.",
    }
    return json.dumps(
        {
            "id": case["id"],
            "intent": intent,
            "action": action_by_intent[intent],
            "confidence": 0.86,
            "needs_human_review": False,
        },
        ensure_ascii=False,
    )


def validate_output(raw):
    try:
        data = json.loads(raw)
    except json.JSONDecodeError as exc:
        return False, f"invalid_json: {exc.msg}", None
    required = ["id", "intent", "action", "confidence", "needs_human_review"]
    missing = [field for field in required if field not in data]
    if missing:
        return False, f"missing_fields: {missing}", data
    if data["intent"] not in INTENTS:
        return False, f"bad_intent: {data['intent']}", data
    if not isinstance(data["confidence"], (int, float)):
        return False, "confidence_not_number", data
    if not 0 <= data["confidence"] <= 1:
        return False, "confidence_out_of_range", data
    if not isinstance(data["needs_human_review"], bool):
        return False, "needs_human_review_not_boolean", data
    return True, "ok", data


def solution_route(text):
    lowered = text.lower()
    if "latest" in lowered or "source" in lowered or "policy" in lowered:
        return "RAG first"
    if "brand tone" in lowered or "keeps using" in lowered:
        return "Prompt eval first, then fine-tuning plan"
    if "json" in lowered or "field" in lowered:
        return "Structured output"
    return "Prompt first"


def build_token_trace():
    rows = []
    for case in SAMPLES:
        tokens = simple_tokenize(case["user_input"])
        rows.append(
            {
                "case_id": case["id"],
                "tokens": tokens,
                "token_ids": [stable_token_id(token) for token in tokens],
                "tiny_embedding": tiny_embedding(tokens),
            }
        )
    return rows


def evaluate_prompt_versions():
    rows = []
    for version in ["v1_goal_only", "v2_json_contract", "v3_json_with_boundary"]:
        for case in SAMPLES:
            payload = build_payload(case, version)
            raw = fake_model(payload, case)
            ok, reason, data = validate_output(raw)
            correct_intent = ok and data["intent"] == case["expected_intent"]
            if ok and not correct_intent:
                reason = f"wrong_intent: {data['intent']} != {case['expected_intent']}"
            rows.append(
                {
                    "prompt_version": version,
                    "case_id": case["id"],
                    "passed": correct_intent,
                    "reason": "ok" if correct_intent else reason,
                    "raw_output": raw,
                }
            )
    return rows


def build_route_decisions():
    return [
        {
            "case_id": case["id"],
            "user_input": case["user_input"],
            "first_route": solution_route(case["user_input"]),
        }
        for case in SAMPLES
    ]


def save_evidence(token_rows, eval_rows, route_rows):
    EVIDENCE_DIR.mkdir(exist_ok=True)
    token_path = EVIDENCE_DIR / "token_trace.json"
    eval_path = EVIDENCE_DIR / "prompt_eval.csv"
    route_path = EVIDENCE_DIR / "route_decisions.json"
    failure_path = EVIDENCE_DIR / "failure_cases.md"
    readme_path = EVIDENCE_DIR / "README.md"

    token_path.write_text(json.dumps(token_rows, indent=2, ensure_ascii=False), encoding="utf-8")
    route_path.write_text(json.dumps(route_rows, indent=2, ensure_ascii=False), encoding="utf-8")

    with eval_path.open("w", newline="", encoding="utf-8") as file:
        writer = csv.DictWriter(file, fieldnames=["prompt_version", "case_id", "passed", "reason", "raw_output"])
        writer.writeheader()
        writer.writerows(eval_rows)

    failures = [row for row in eval_rows if not row["passed"]]
    failure_lines = ["# Failure Cases", ""]
    for row in failures:
        failure_lines.append(f"- {row['prompt_version']} / {row['case_id']}: {row['reason']}")
    failure_path.write_text("\n".join(failure_lines) + "\n", encoding="utf-8")

    passed_v3 = sum(row["passed"] for row in eval_rows if row["prompt_version"] == "v3_json_with_boundary")
    readme_path.write_text(
        "# Chapter 7 LLM Workshop Evidence\n\n"
        "Run command: `python llm_stage_workshop.py`\n\n"
        f"Best prompt version: v3_json_with_boundary ({passed_v3}/{len(SAMPLES)} passed)\n\n"
        "Review `failure_cases.md` before deciding whether to change Prompt, add RAG, or plan fine-tuning.\n",
        encoding="utf-8",
    )
    return [token_path, eval_path, route_path, failure_path, readme_path]


def main():
    token_rows = build_token_trace()
    print("STEP 1: Token and vector trace")
    for row in token_rows:
        print(
            f"{row['case_id']} tokens={row['tokens'][:8]} "
            f"ids={row['token_ids'][:8]} vector={row['tiny_embedding']}"
        )

    eval_rows = evaluate_prompt_versions()
    print("\nSTEP 2: Prompt version evaluation")
    for version in ["v1_goal_only", "v2_json_contract", "v3_json_with_boundary"]:
        version_rows = [row for row in eval_rows if row["prompt_version"] == version]
        passed = sum(row["passed"] for row in version_rows)
        failures = [f"{row['case_id']}:{row['reason']}" for row in version_rows if not row["passed"]]
        print(f"{version}: {passed}/{len(version_rows)} passed; failures={failures or ['none']}")

    route_rows = build_route_decisions()
    print("\nSTEP 3: Solution route check")
    for row in route_rows:
        print(f"{row['case_id']} -> {row['first_route']}")

    saved_files = save_evidence(token_rows, eval_rows, route_rows)
    print("\nSTEP 4: Evidence files")
    for path in saved_files:
        print(path.as_posix())


if __name__ == "__main__":
    main()

Run it:

python llm_stage_workshop.py

Expected output

You should see output close to this:

STEP 1: Token and vector trace
case_1 tokens=['i', 'understand', 'tokens', 'but', 'not', 'attention', 'give', 'me'] ids=[3860, 5684, 9523, 2631, 3109, 1613, 4738, 9496] vector=[0.0, 0.324, 0.324, 0.162, 0.811, 0.324]
case_2 tokens=['convert', 'this', 'note', 'into', 'json', 'fields', 'topic', 'lora'] ids=[9914, 5551, 4760, 3544, 3358, 1778, 2081, 3008] vector=[0.0, 0.189, 0.756, 0.189, 0.567, 0.189]
case_3 tokens=['our', 'assistant', 'keeps', 'using', 'the', 'wrong', 'brand', 'tone'] ids=[8696, 9265, 8706, 6757, 7679, 4122, 2342, 7190] vector=[0.343, 0.686, 0.514, 0.0, 0.171, 0.343]

STEP 2: Prompt version evaluation
v1_goal_only: 0/3 passed; failures=['case_1:invalid_json: Expecting value', 'case_2:invalid_json: Expecting value', 'case_3:invalid_json: Expecting value']
v2_json_contract: 2/3 passed; failures=["case_3:missing_fields: ['confidence', 'needs_human_review']"]
v3_json_with_boundary: 3/3 passed; failures=['none']

STEP 3: Solution route check
case_1 -> Prompt first
case_2 -> Structured output
case_3 -> Prompt eval first, then fine-tuning plan

STEP 4: Evidence files
ch07_workshop_evidence/token_trace.json
ch07_workshop_evidence/prompt_eval.csv
ch07_workshop_evidence/route_decisions.json
ch07_workshop_evidence/failure_cases.md
ch07_workshop_evidence/README.md

What each step means

Output area	What to observe	Chapter concept
tokens and ids	Text is split into smaller units and mapped to numbers	Tokenizer and token ids
vector	A tiny teaching vector shows that text can become numeric features	Embedding intuition
v1_goal_only	The answer may be helpful, but the program cannot parse it	Vague prompt and unstable interface
v2_json_contract	JSON helps, but missing fields and wrong enum values still break the workflow	Structured output validation
v3_json_with_boundary	Adding allowed values, types, and review rules makes the result testable	Prompt iteration and schema design
solution_route	Different problems need different first moves	Prompt, RAG, structured output, fine-tuning boundaries
ch07_workshop_evidence	The run is saved as files that can be inspected, compared, and shared	Reproducible project evidence

Beginner troubleshooting

Symptom	Likely cause	Fix
python: command not found	Your system uses python3 instead of python	Run python3 llm_stage_workshop.py
Output differs in spacing	Python may print lists with small formatting differences	Focus on pass counts and failure reasons
invalid_json appears	The simulated model returned natural language, not JSON	This is intentional for v1_goal_only
missing_fields appears	The output contract was not strict enough	Compare v2_json_contract with v3_json_with_boundary
Evidence files are not created	You ran the script in a read-only folder or stopped before STEP 4	Run it in a normal project folder and check that STEP 4 printed file paths
You want a real model call	The workshop is offline by design	First finish this page, then use the LLM Call Workbench optional API section

Optional: replace the fake model later

After the offline workflow is clear, you can replace fake_model() with a real model call. For current OpenAI text-generation work, prefer the Responses API and structured outputs instead of copying old chat-completion examples.

Model names change

This workshop uses gpt-5.5 in payload examples because the current OpenAI model docs list GPT-5.5 as the latest frontier model. For production code, keep OPENAI_MODEL configurable and check the official OpenAI Models, Responses API, and Structured Outputs docs before publishing.

A real structured-output call can look like this:

import os
from pydantic import BaseModel
from openai import OpenAI


class RouteResult(BaseModel):
    intent: str
    action: str
    confidence: float
    needs_human_review: bool


client = OpenAI()

response = client.responses.parse(
    model=os.getenv("OPENAI_MODEL", "gpt-5.5"),
    input=[
        {
            "role": "system",
            "content": (
                "Classify the learner request. Return a practical next action. "
                "Use needs_human_review only for unsafe, legal, medical, or production decisions."
            ),
        },
        {
            "role": "user",
            "content": "Our assistant keeps using the wrong brand tone. Should we fine-tune?",
        },
    ],
    text_format=RouteResult,
)

print(response.output_parsed.model_dump())

Run the real version only after installing dependencies and setting your key:

pip install --upgrade openai pydantic
export OPENAI_API_KEY="your_api_key_here"
python real_route_call.py

Read the evidence pack

The script now saves the minimum portfolio version automatically. Open the folder after the run:

ls ch07_workshop_evidence

You should see:

File	What to put inside
README.md	Run command, best prompt version, and the next review step
token_trace.json	Tokens, token ids, and tiny vectors for every case
prompt_eval.csv	One row per prompt version and test case, including pass/fail reason
route_decisions.json	Which first route each case should use
failure_cases.md	The failures you should inspect before changing Prompt, adding RAG, or planning fine-tuning

Open failure_cases.md first. It tells you why v1 is not machine-readable and why v2 is still not strict enough. That is the habit this chapter is trying to build: never decide based on one impressive answer; decide from repeatable failures and saved evidence.

Exit checklist

• I can run the workshop locally.
• I can explain why natural-language output is not enough for product workflows.
• I can explain why validation catches both invalid JSON and missing fields.
• I can compare prompt versions with fixed test cases.
• I can explain why fine-tuning should usually come after prompt evaluation and clear failure evidence.

If all five are checked, you have turned Chapter 7 from a concept chapter into a runnable engineering loop.
